System features:

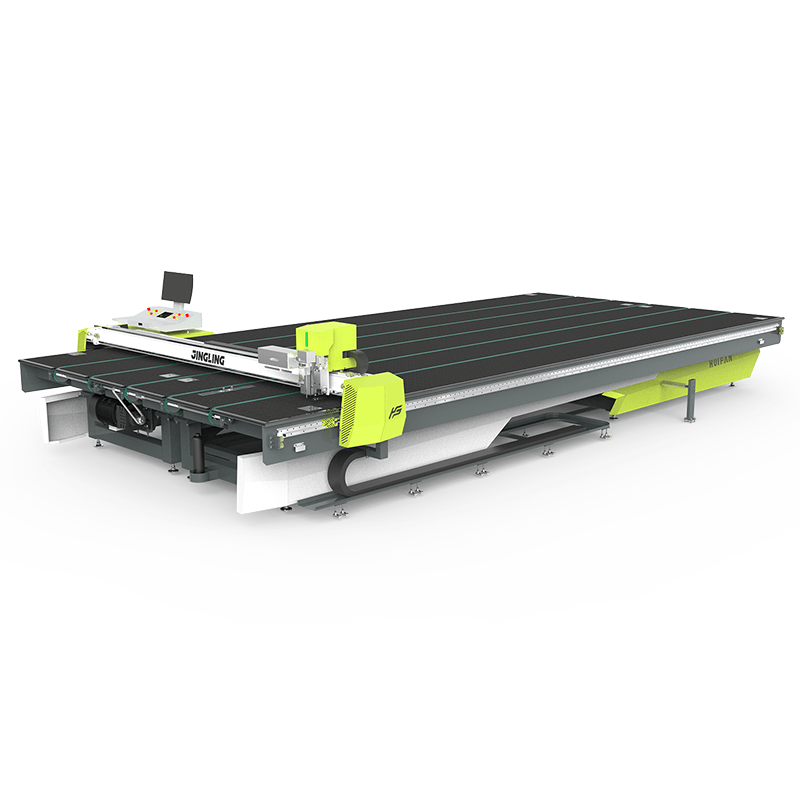

The advanced mechanical structure is matched with the imported cutting and optimization system, which greatly improves the stability of the cutting machine and the cutting quality and optimization rate of the glass. Create a high-end automatic Cutting speed line in China to achieve automatic glass loading/automatic transmission/automatic positioning/automatic optimization/automatic cutting and breaking operations.
Model | Max glass size(mm) | Glass thickness(mm) | Max speed(m/min) | Linear precision(mm/m) | Diagonal accuracy(mm/m2) | Acceleration of cuttingm/s2 |
HF-CNC-2520 | 2500×2000 | 2-12 | 200 | ≤±0.15 | ±0.2 | 8-10 |
HF-CNC-4228 | 4200×2800 | 3-19 | 200 | ≤±0.15 | ±0.2 | 8-10 |
HF-CNC-5233 | 5200×3300 | 3-19 | 200 | ≤±0.15 | ±0.2 | 8-10 |
HF-CNC-6133 | 6100×3300 | 3-19 | 200 | ≤±0.15 | ±0.2 | 8-10 |
