System features:
Structural innovation: Three-dimensional modeling optimizes mechanical distribution, rigidity is increased by 30%, and vibration suppression ability is significantly enhanced.
Technology requirements: The bed stress elimination rate reaches 98%, the guide rail mounting surface roughness ≤ Ra3.2μm, and the transmission accuracy reaches ±0.02mm/m.
Configuration upgrade: Core components such as vacuum system, rack, guide rail assembly are derived from European first-line brands to ensure 24-hour trouble-free operation of the equipment.
Intelligent cutting optimization system: Through algorithm upgrades and process reconstruction, cutting efficiency is increased by 30%, helping to break through production capacity.
Dual oil storage system: supports the storage of 2 types of cutting oil at the same time, which can be flexibly switched according to material characteristics, adapted to multiple processing scenarios, and further improves process compatibility and production convenience.

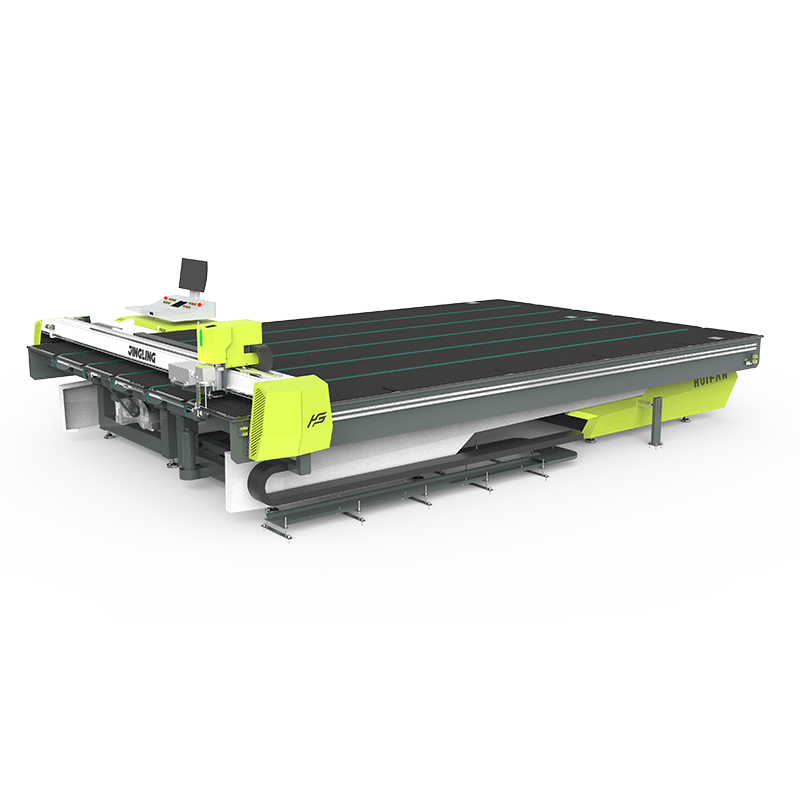

Technical Parameter | HF-JDB-CNC-2520 | HF-JDB-CNC-4228 | HF-JDB-CNC-5133 | HF-JDB-CNC-6133 |
Maximum glass size | 2500×2000mm | 4200×2800mm | 5100×3300mm | 6100×3300mm |
Minimum glass size | 1350×1350mm | 1450×1450mm | 1650×1650mm | 1650×1650mm |
Glass thickness | 2-19mm | 2-19mm | 3-19mm | 3-19mm |
Cutting speed | ≤200m/min | ≤200m/min | ≤200m/min | ≤200m/min |
Linear accuracy | ±0.15mm | ±0.15mm | ±0.15mm | ±0.15mm |
Shape accuracy | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |
Diagonal accuracy | ±0.2mm | ±0.2mm | ±0.2mm | ±0.2mm |

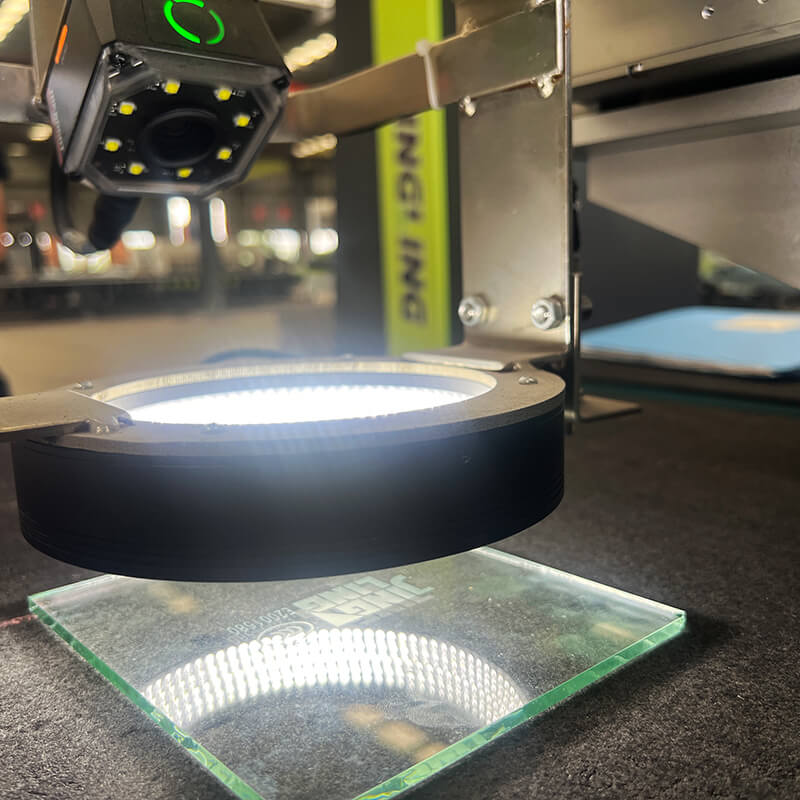

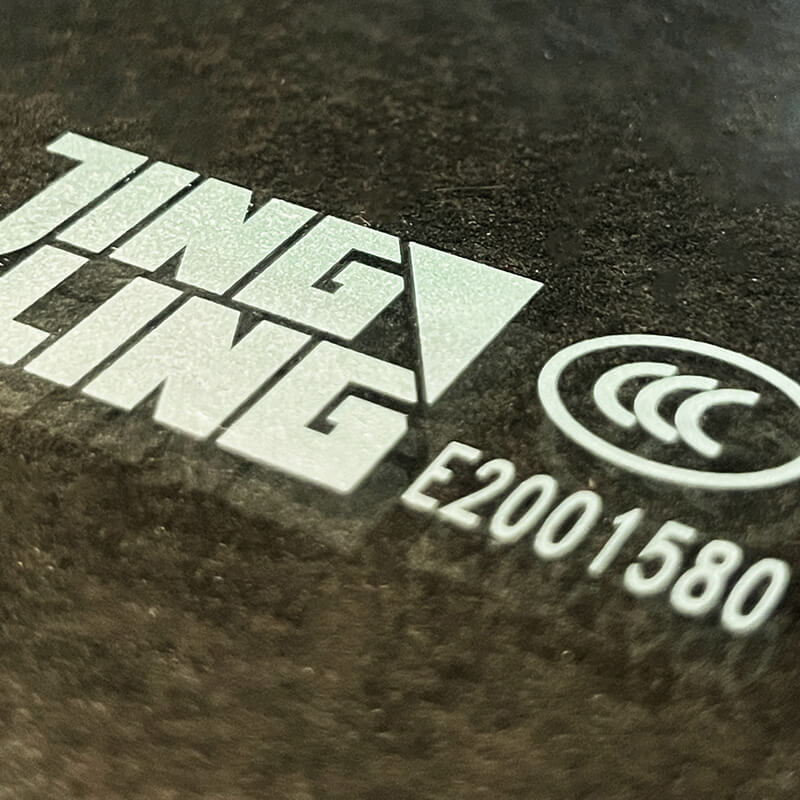

Laster marking speed | 3-5s/pc. | 3-5s/pc. | 3-5s/pc. | 3-5s/pc. |
Suction depth | 650mm | 650mm | 650mm | 650mm |
Working height | 900±30mm | 900±30mm | 900±30mm | 900±30mm |
