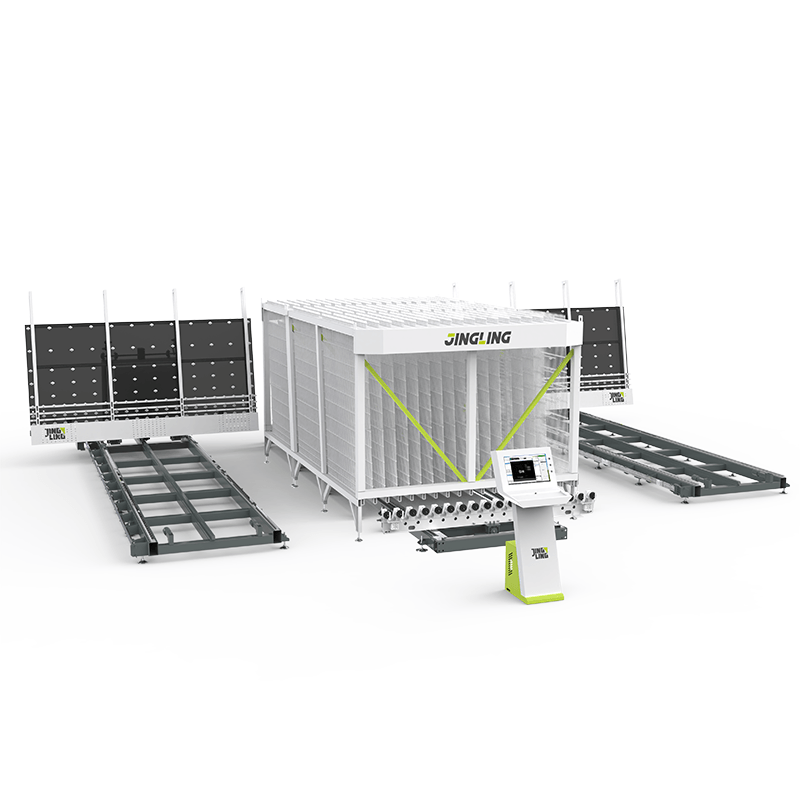

System features
It can connect to the ERP system and feed back real-time system information to provide accurate data for decision-makers. Featuring a modular design, the system supports flexible deployment and fully satisfies customers' various storage demands.
Glass loading, unloading and warehousing are fully automated with no manual work required, as all tasks are intelligently scheduled by computer.
It effectively avoids scratches, collisions and misplacement caused by manual handling, and ensures all glass products are produced strictly in accordance with orders and well preserved. With the advantages of automation control and flexible operation.
The vertical glass sorting system optimizes costs, product quality and workplace safety, helping enterprises stay competitive in the increasingly fierce market.
Techincal parameter | JL-LP-2520 | JL-LP-3525 | JL-LP-4525 |
Maximum glass size | 2500×2000mm | 3500×2500mm | 4500×2500mm |
Minimum glass size | 500×500mm | 500×500mm | 500×500mm |
Glass thickness | 3-12mm | 3-12mm | 3-12mm |
Shuttle carriage speed | ≤200m/min | ≤200m/min | ≤200m/min |
Transfer speed | ≤45m/min | ≤45m/min | ≤45m/min |
Table height | 550±50mm | 550±50mm | 550±50mm |
